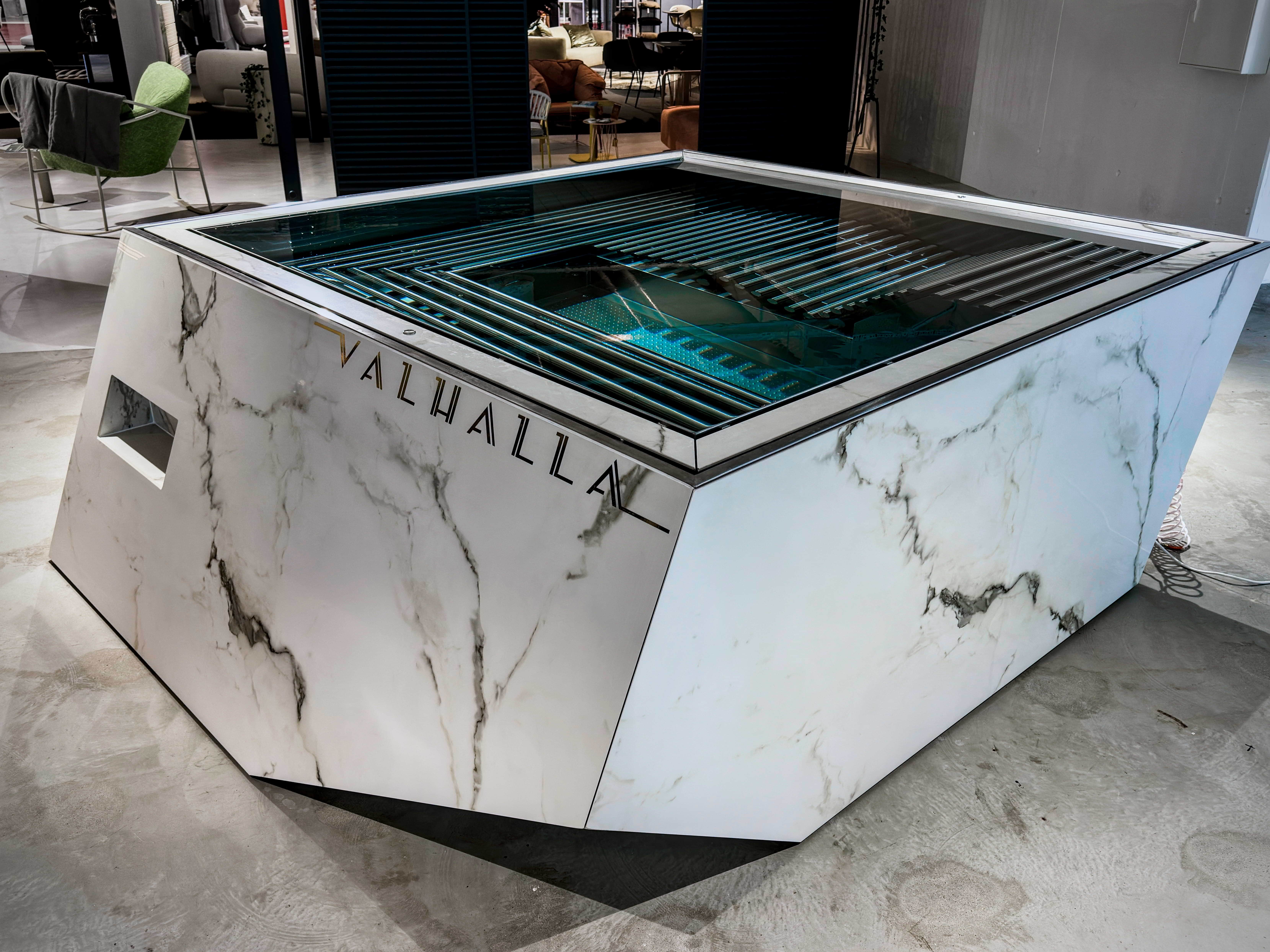

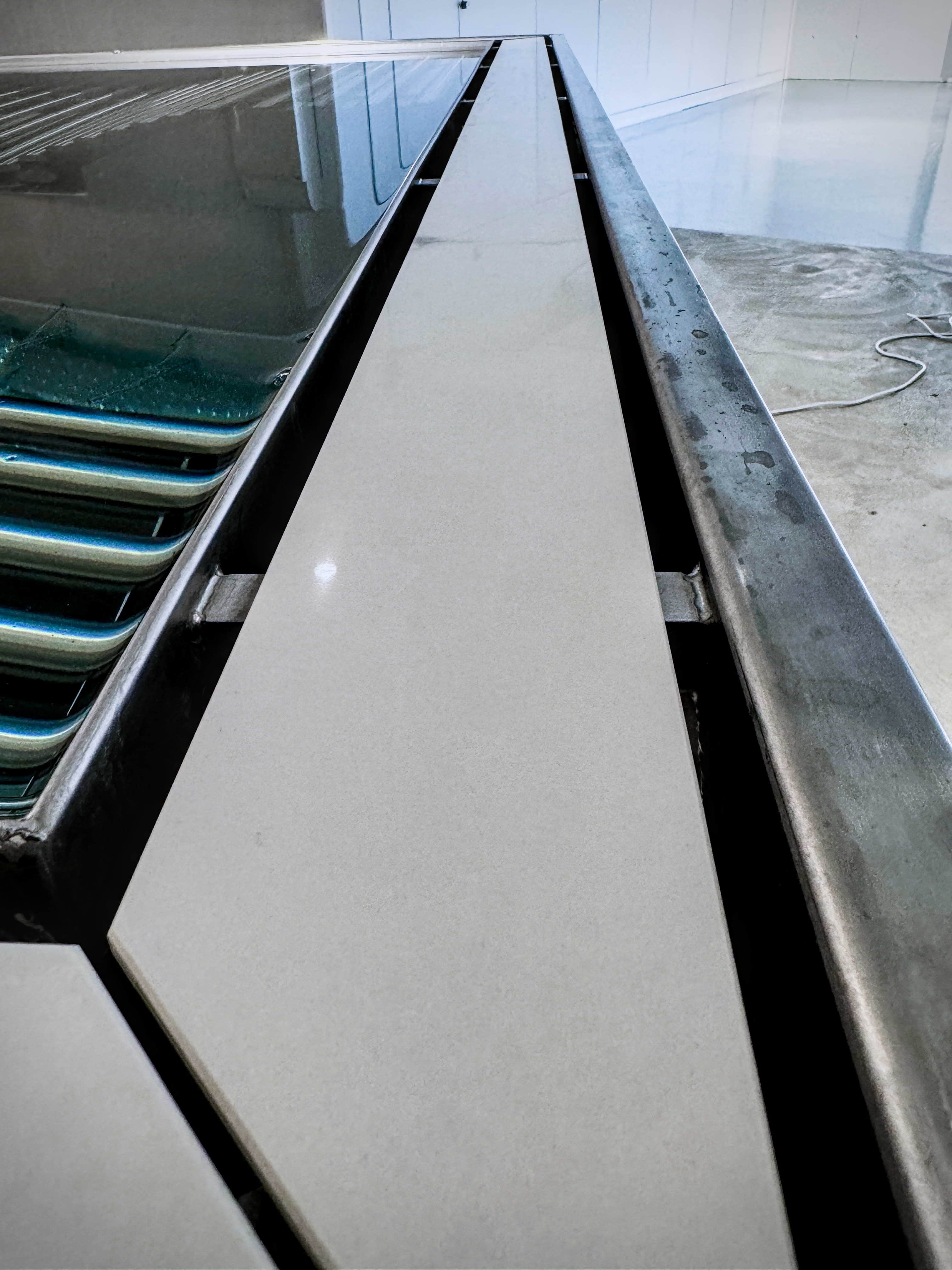

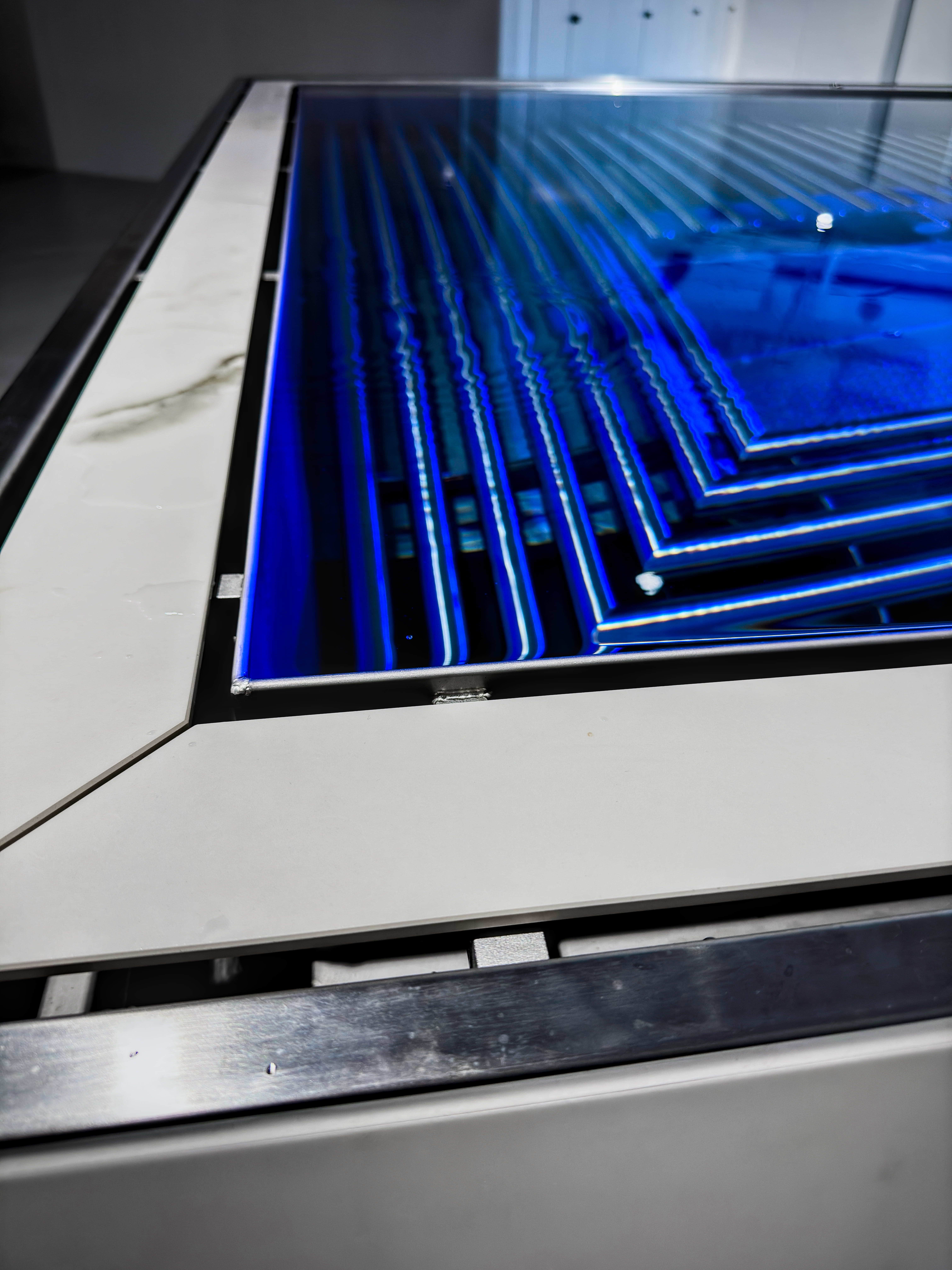

The infinity effect creates the highest possible water level, making the water appear to flow over the edge.
Automatic water level and pool chemicals control, powerful sand filter system with automatic backwash, automatic pH regulation and flocculation systems.

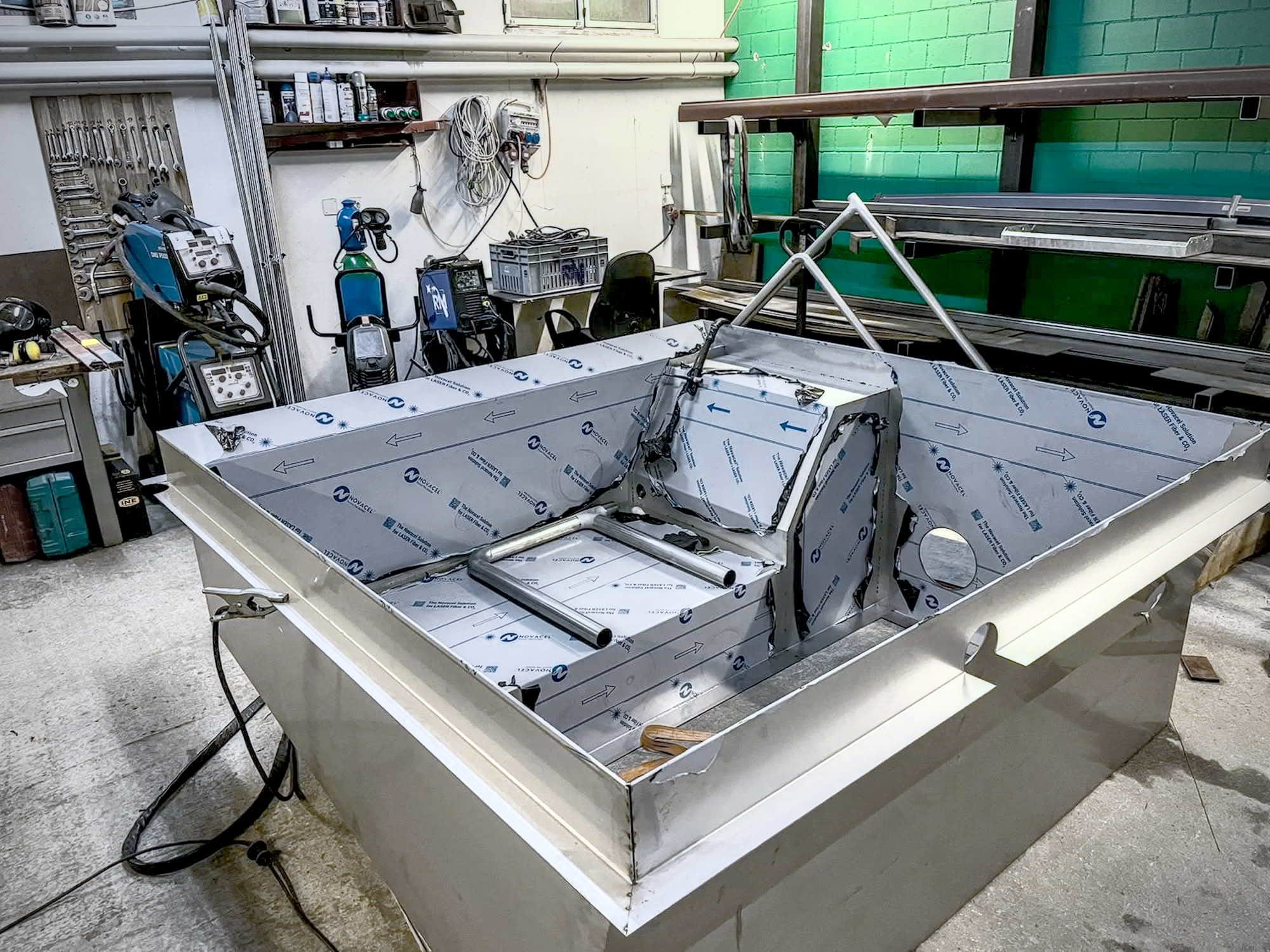

Exceptionally durable and low-maintenance V4A stainless steel for guaranteed robustness, corrosion resistance, and complete impermeability.

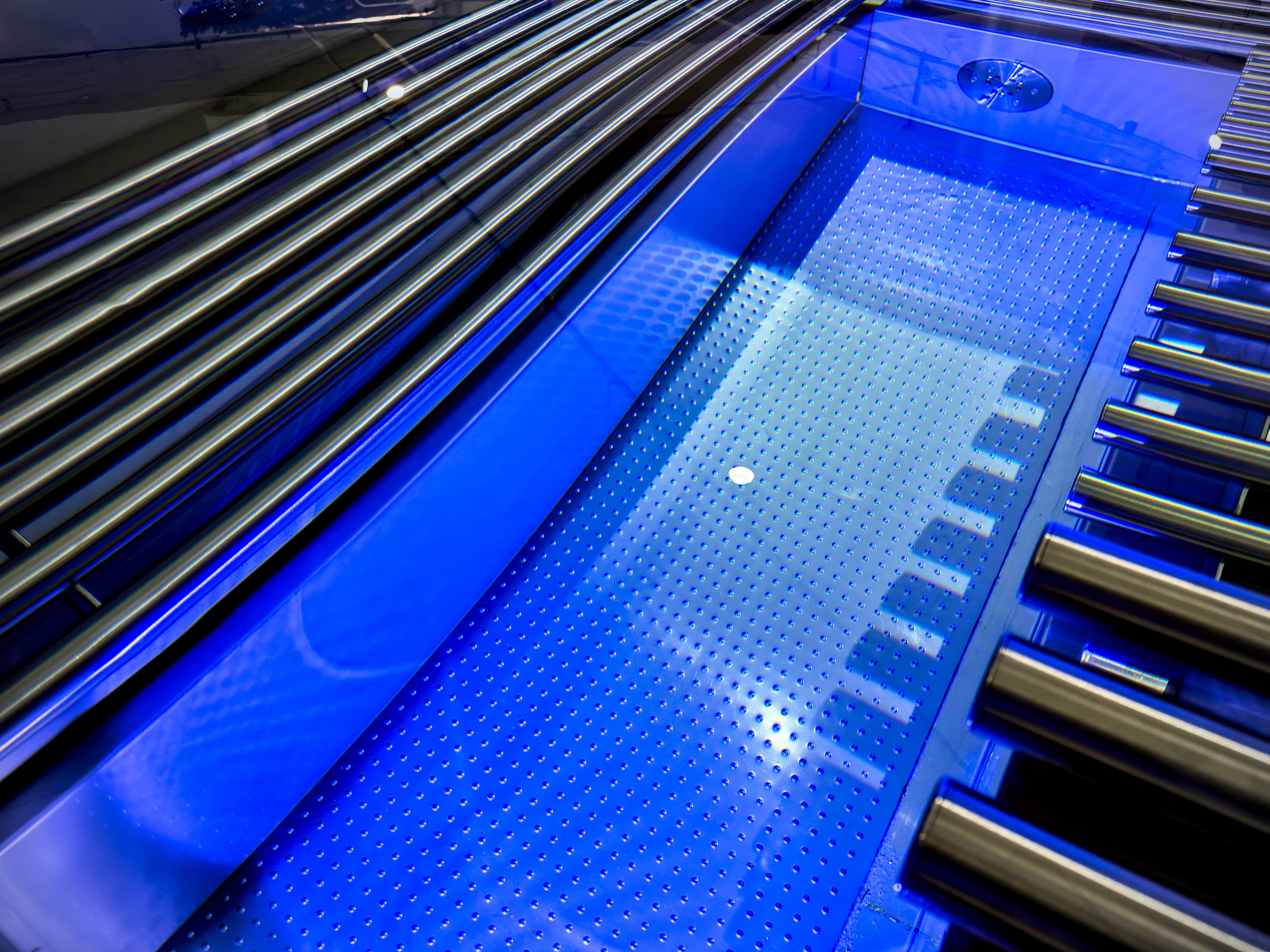

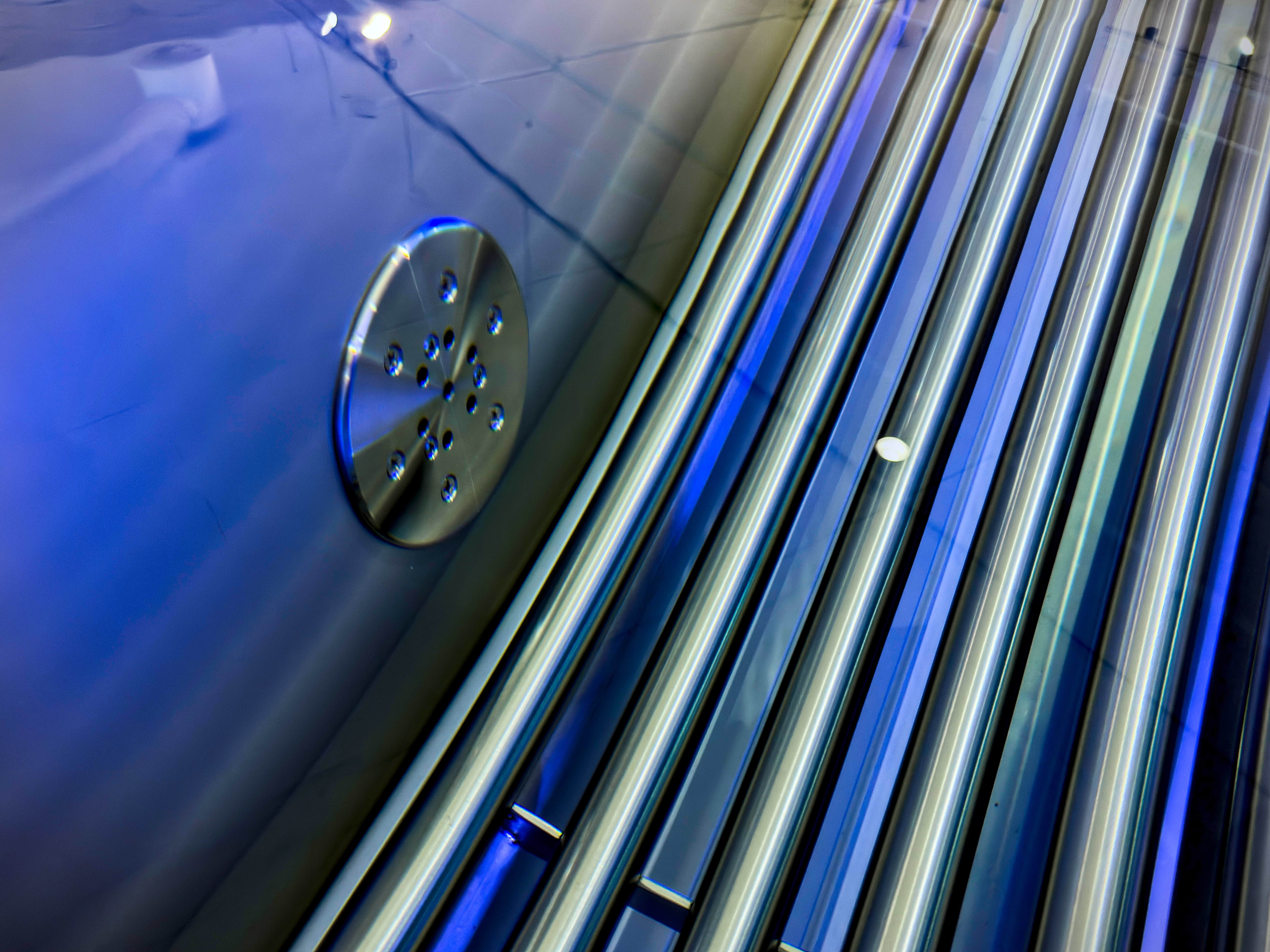

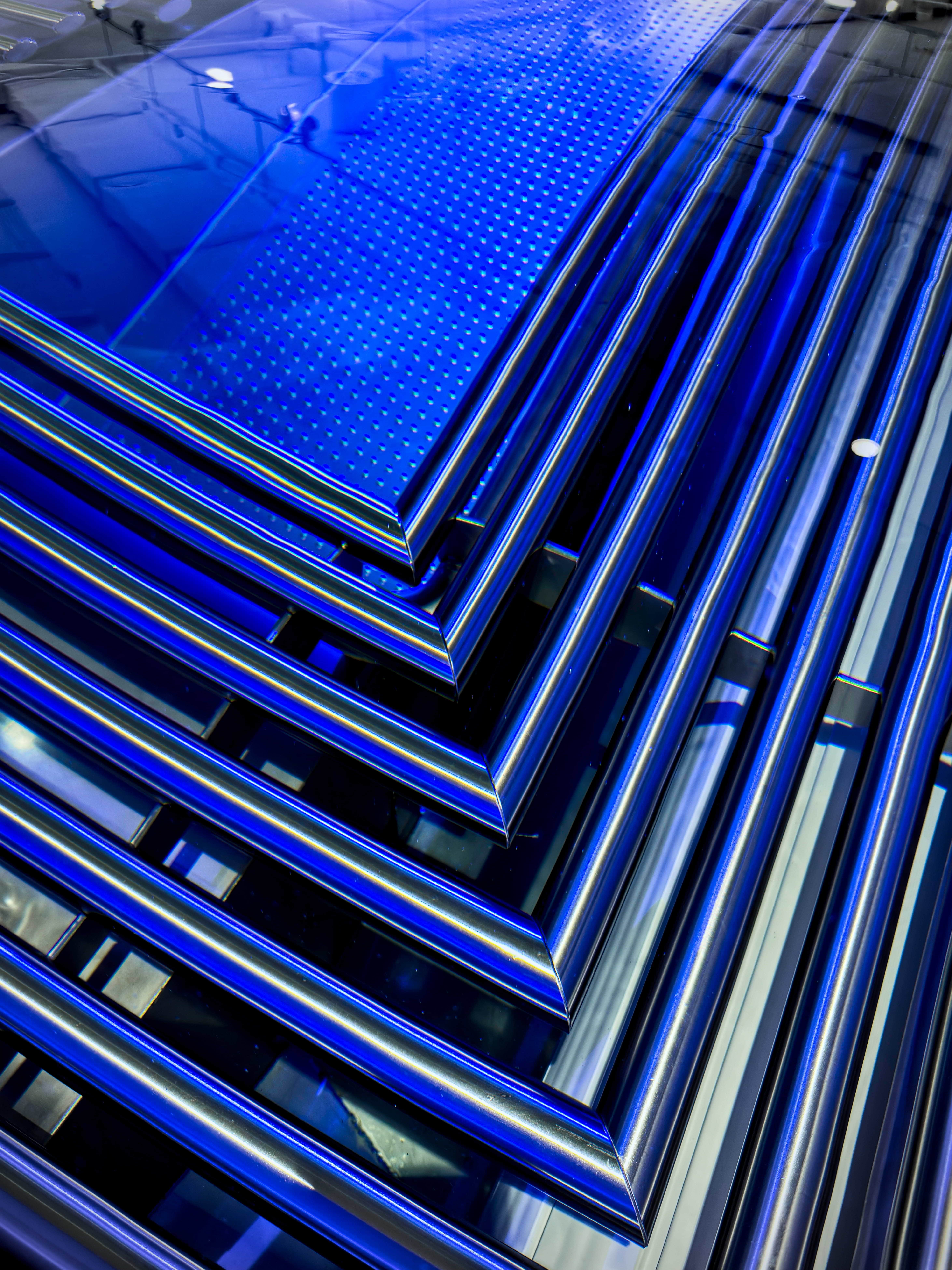

The ergonomically designed air bubble lounge and air bubble/massage bench for up to 5 people. With 110 air nozzles and 4 massage jets and adjustable RGB LED lighting.

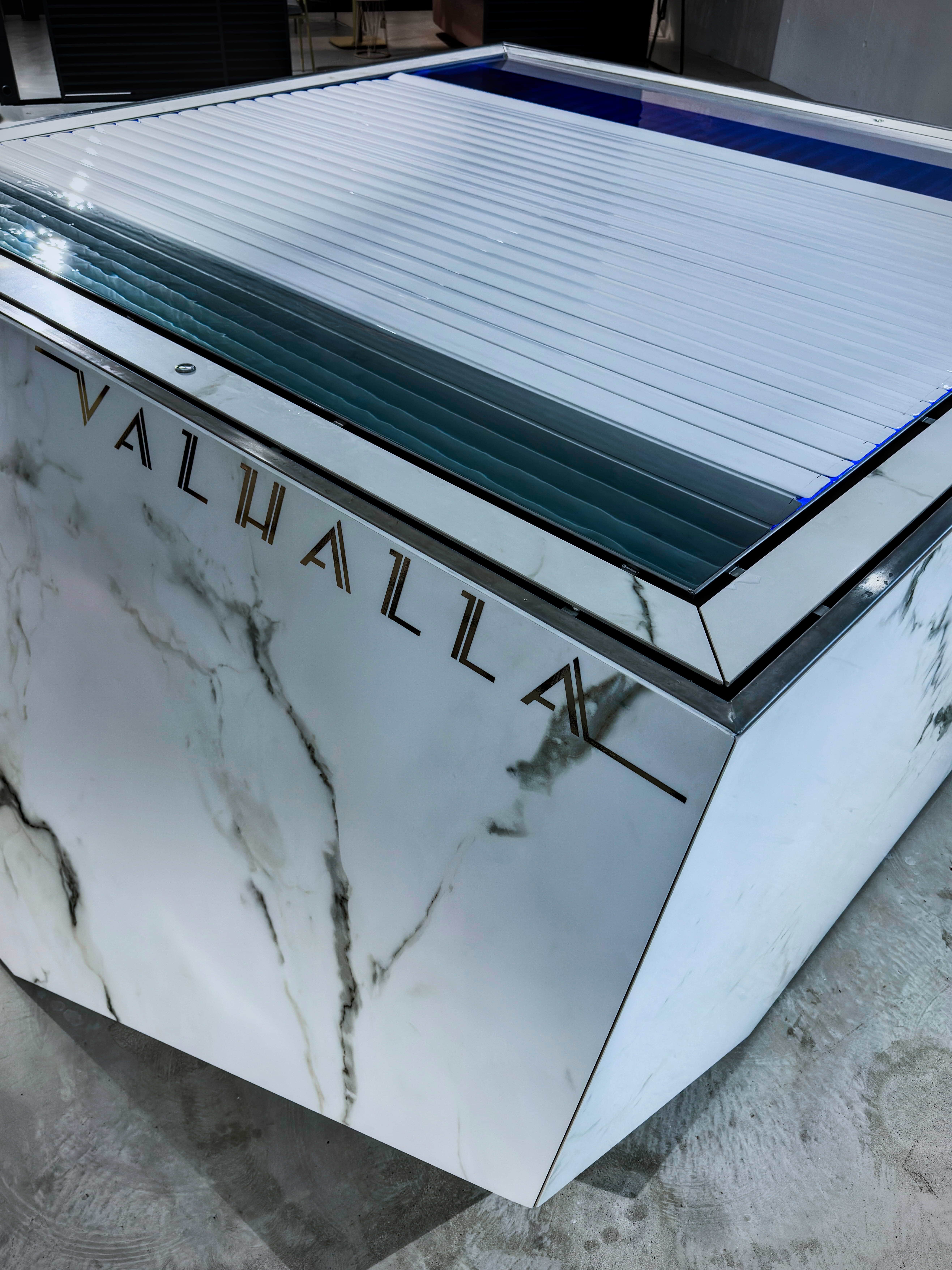

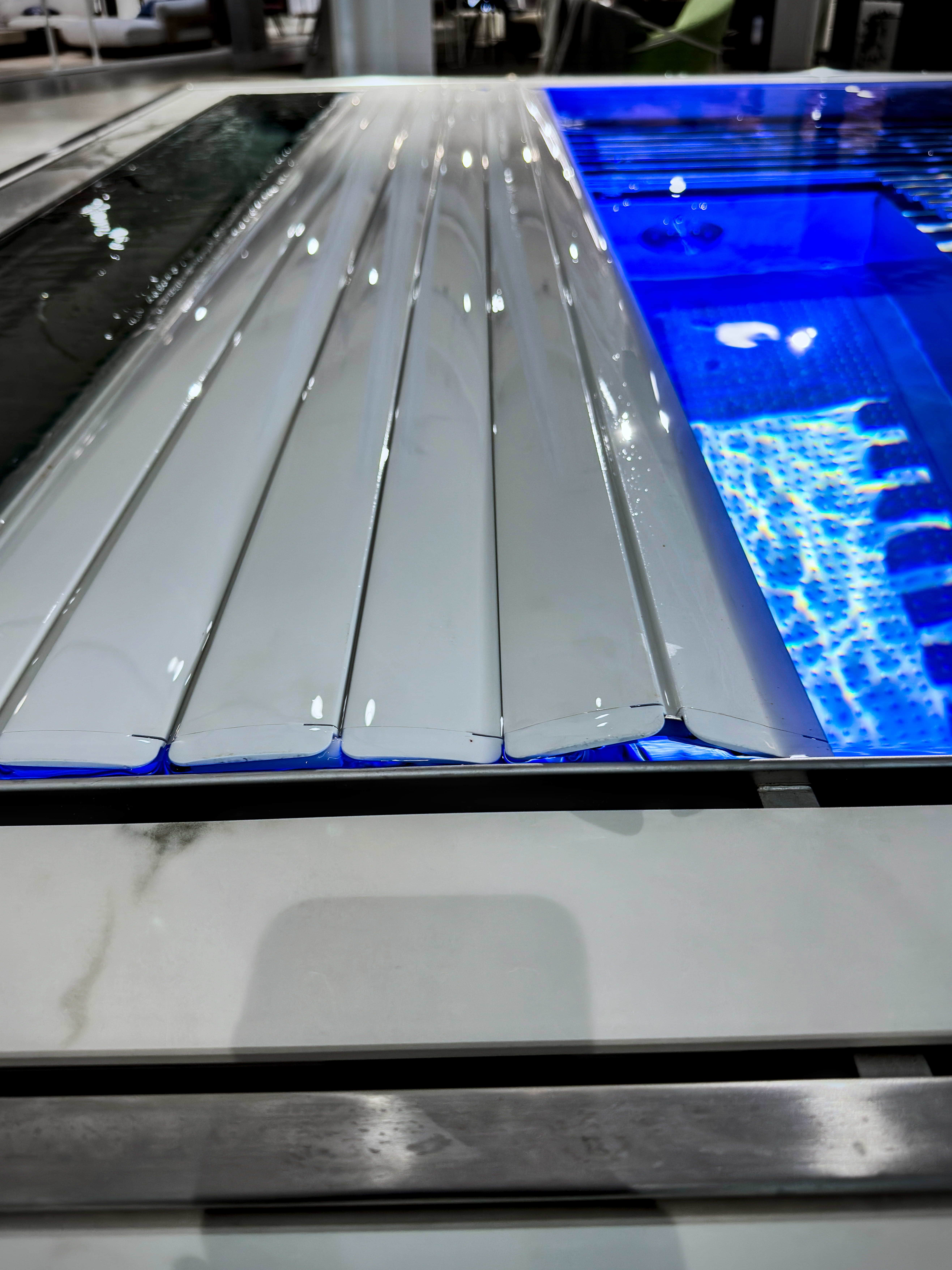

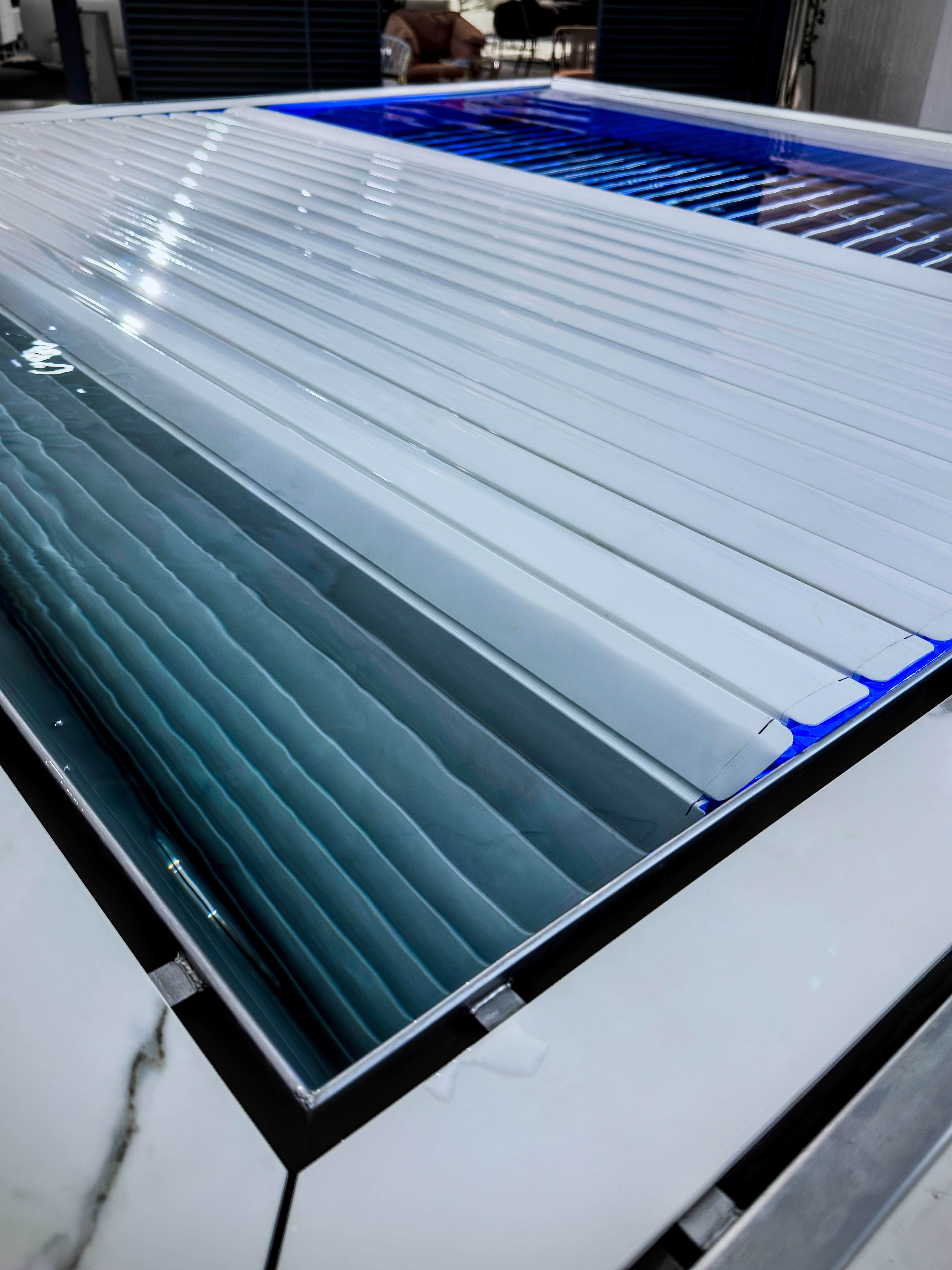

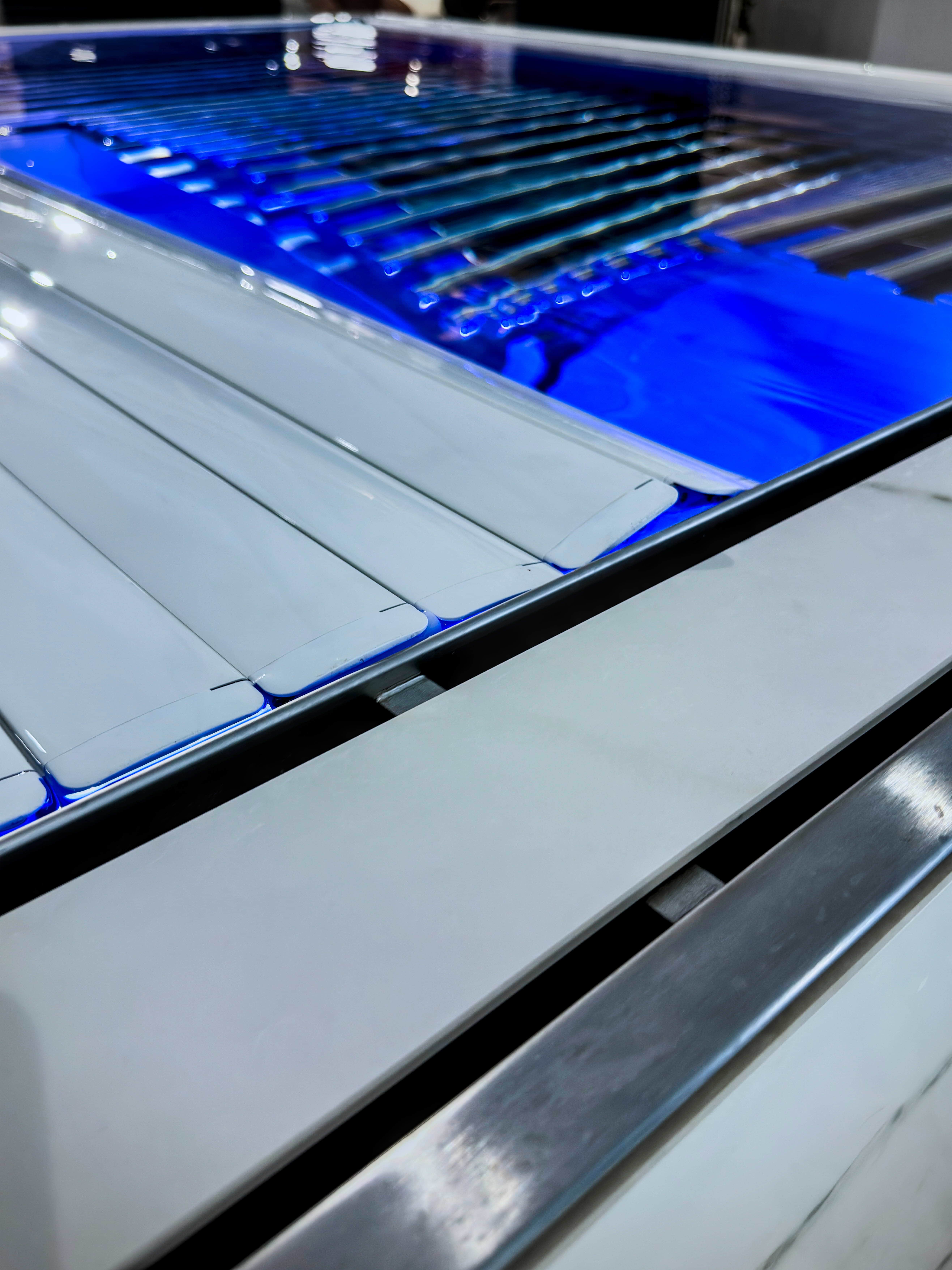

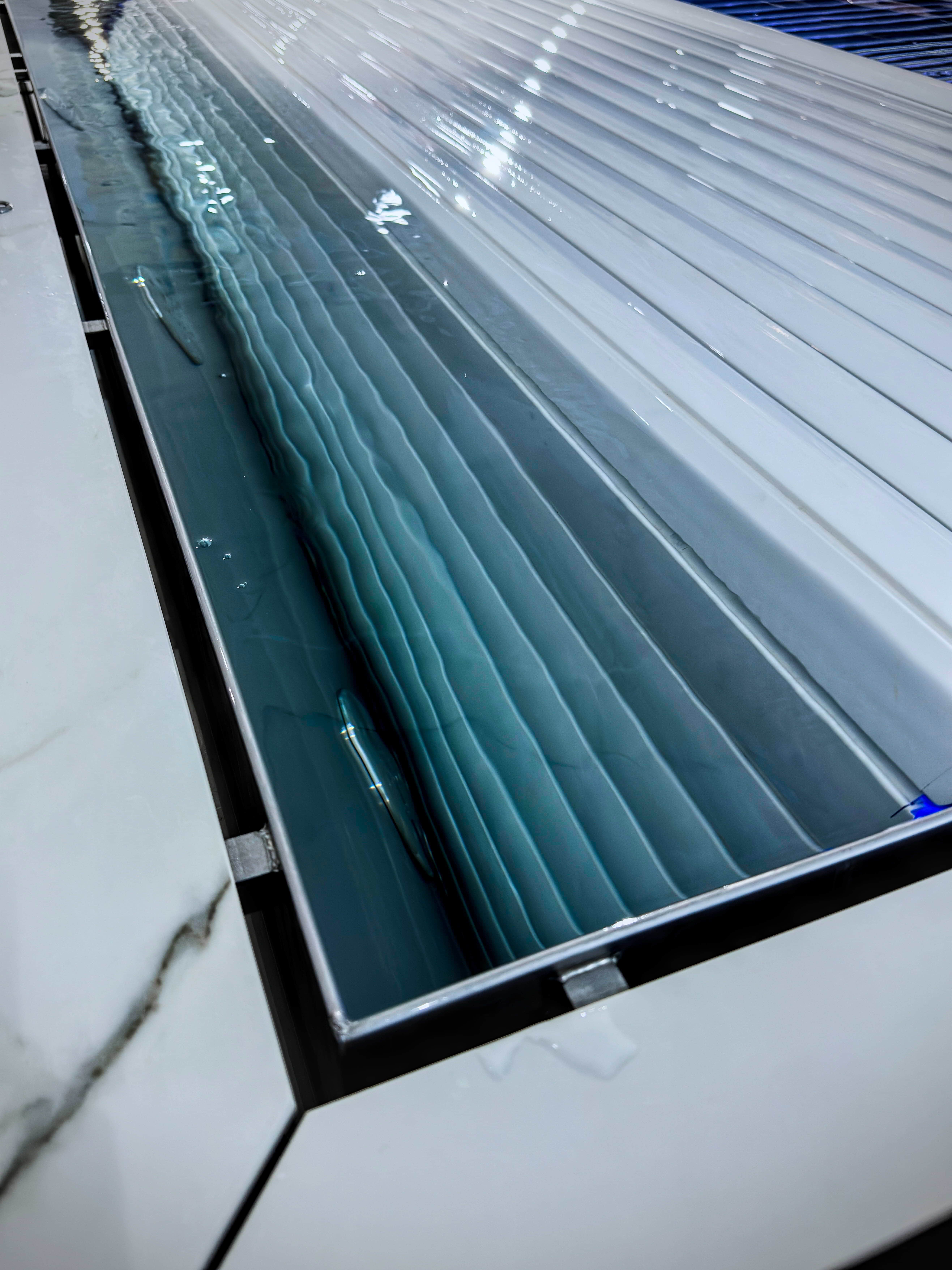

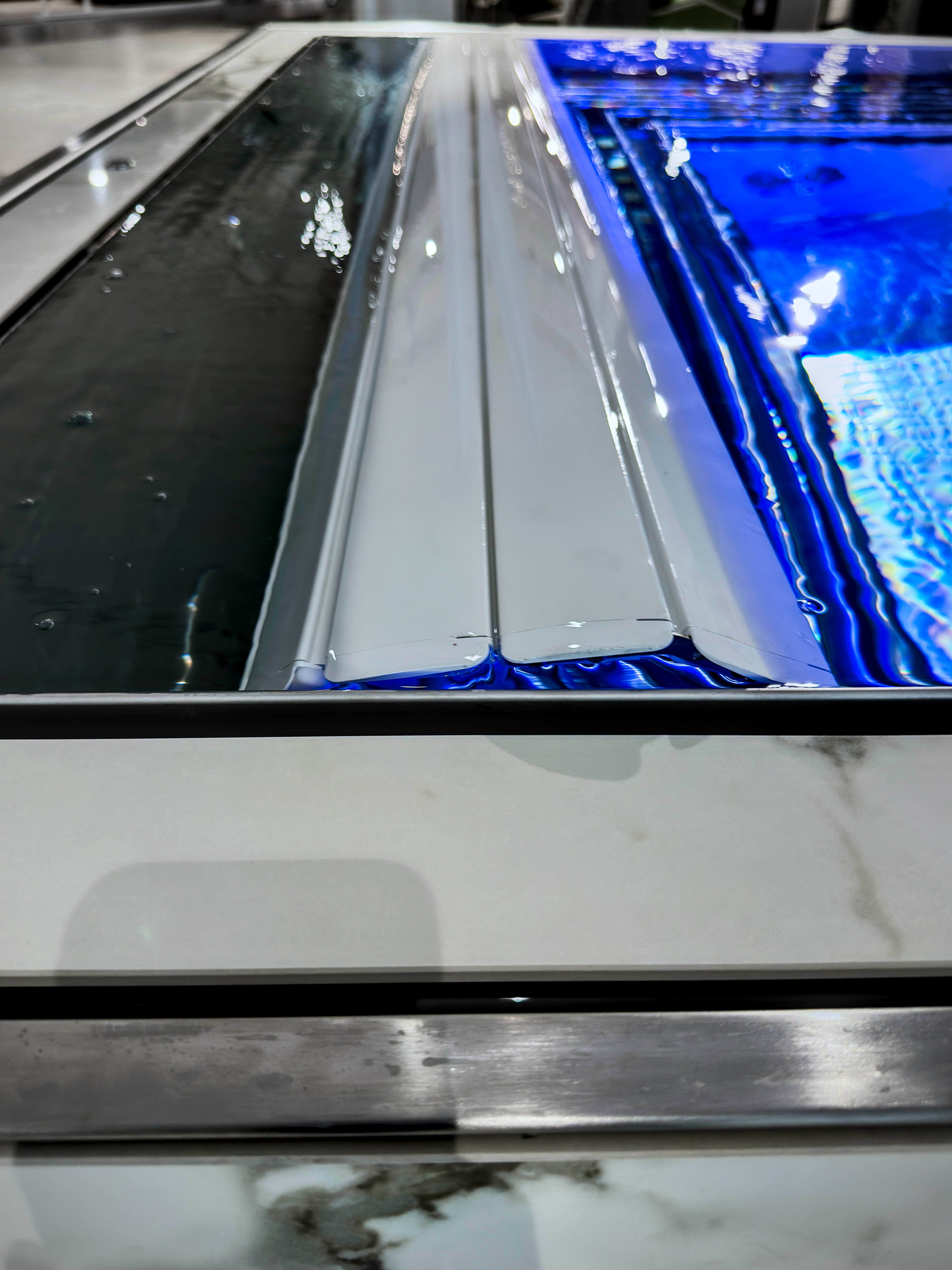

Built-in integrated rolling shutter covers from BAC simplify maintenance and boost energy efficiency by reducing heat loss.

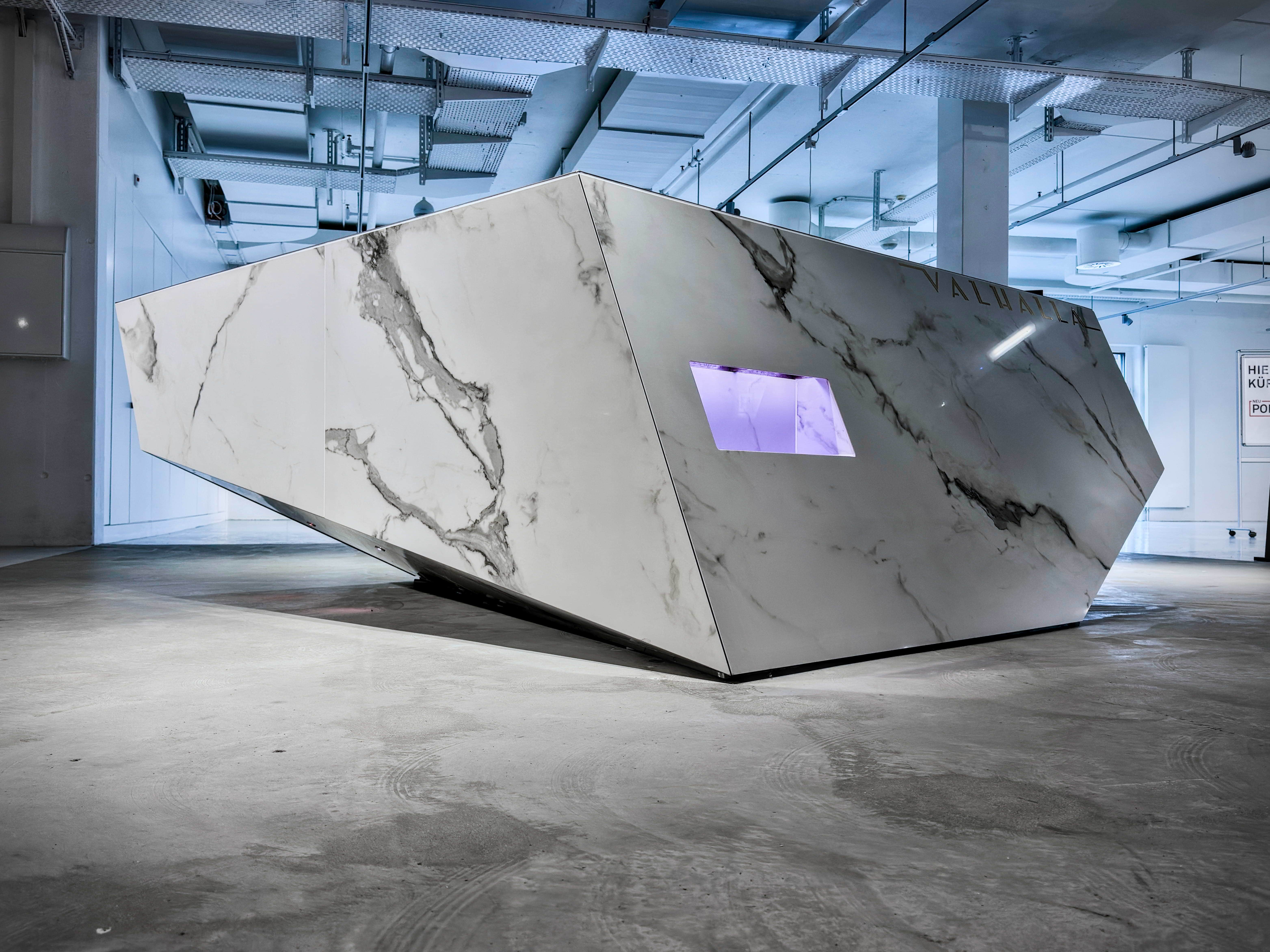

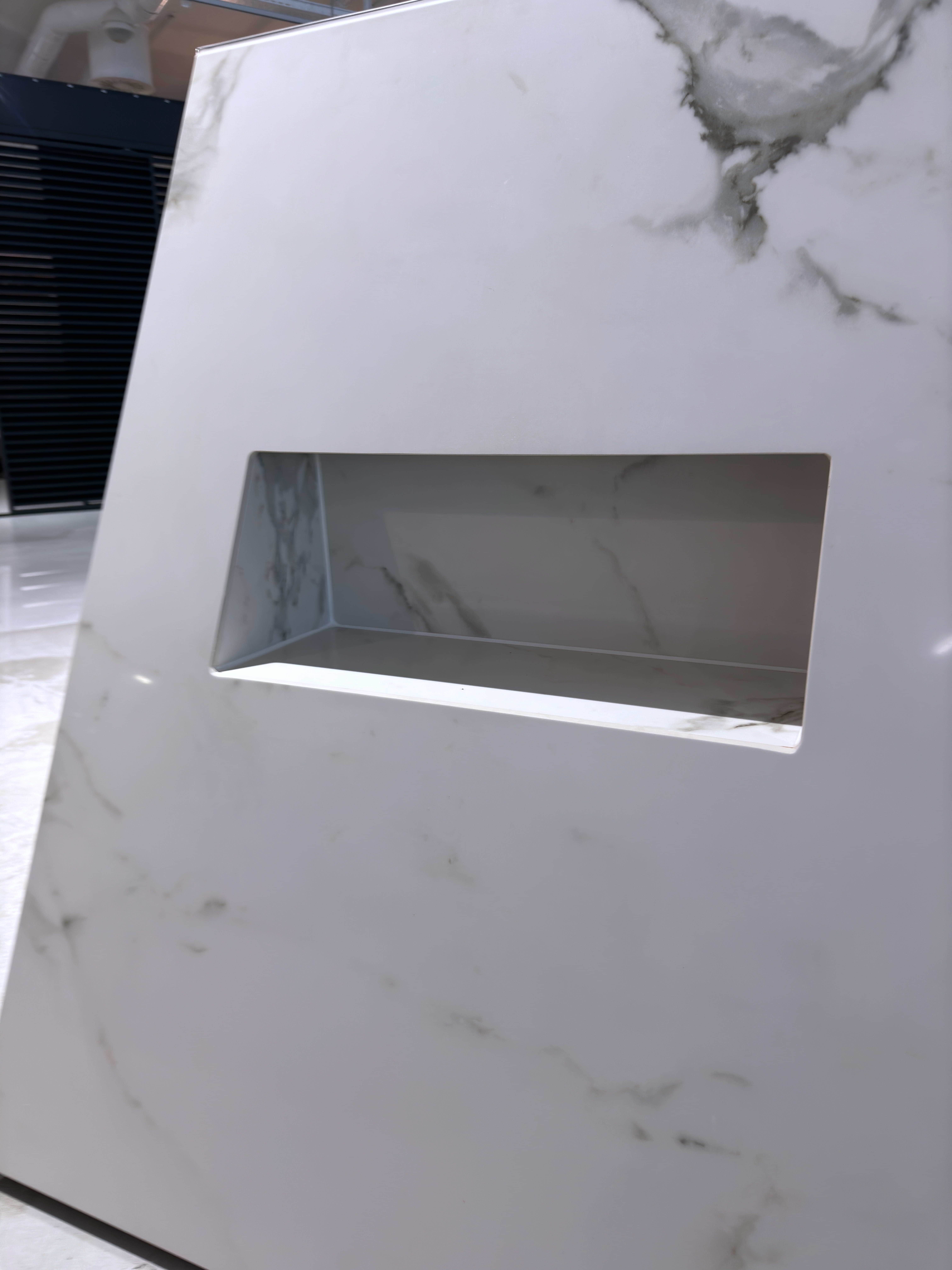

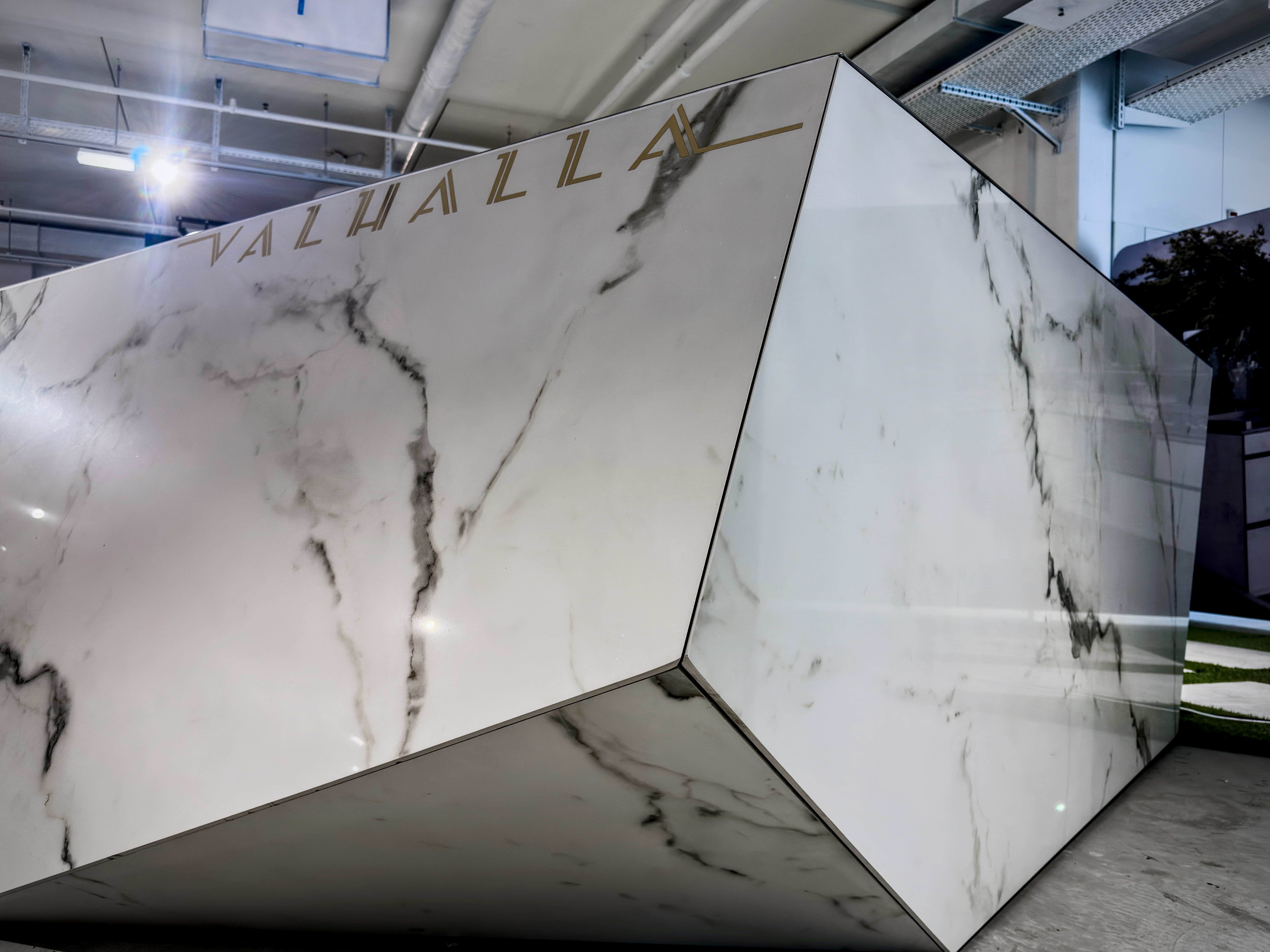

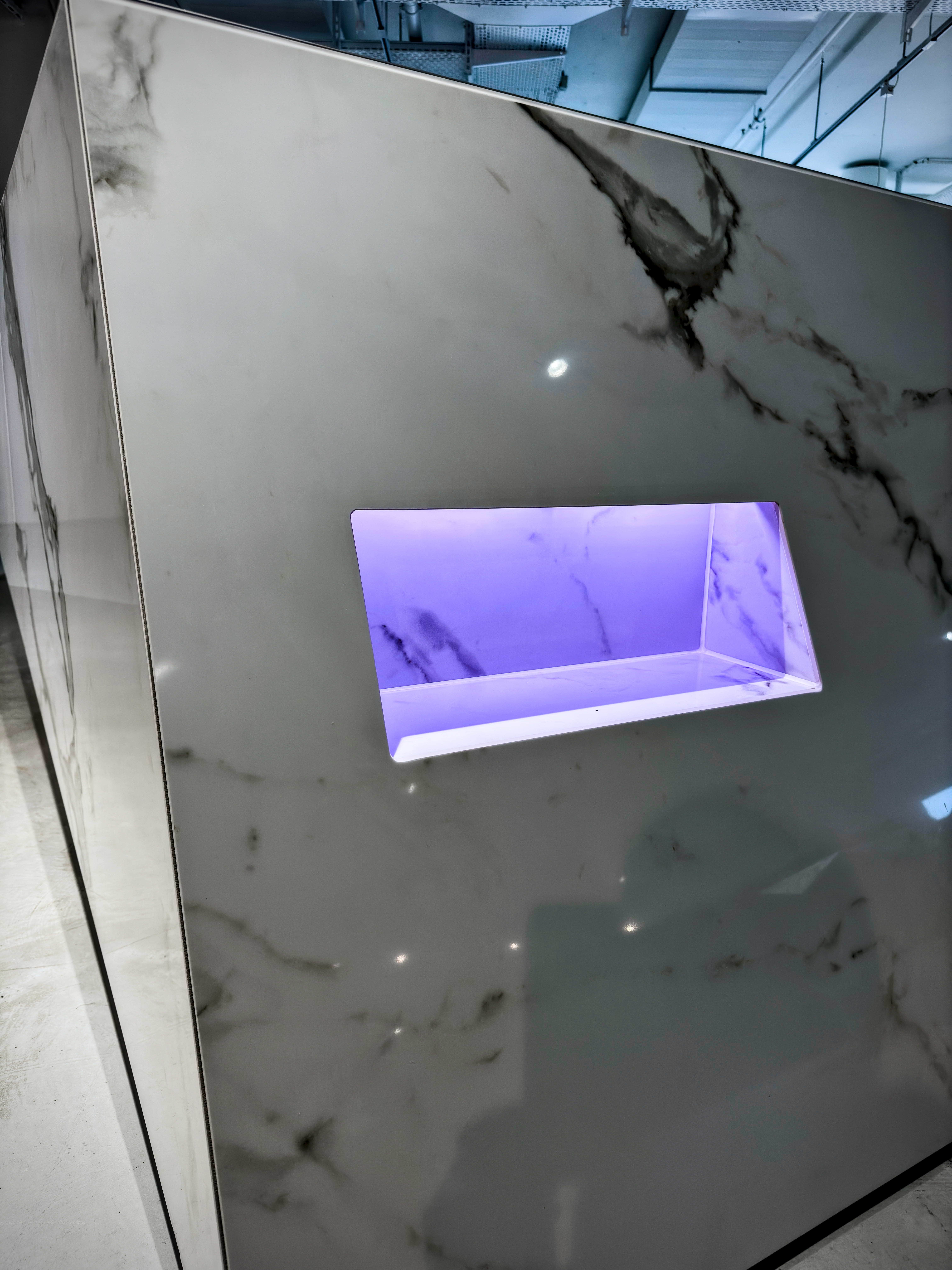

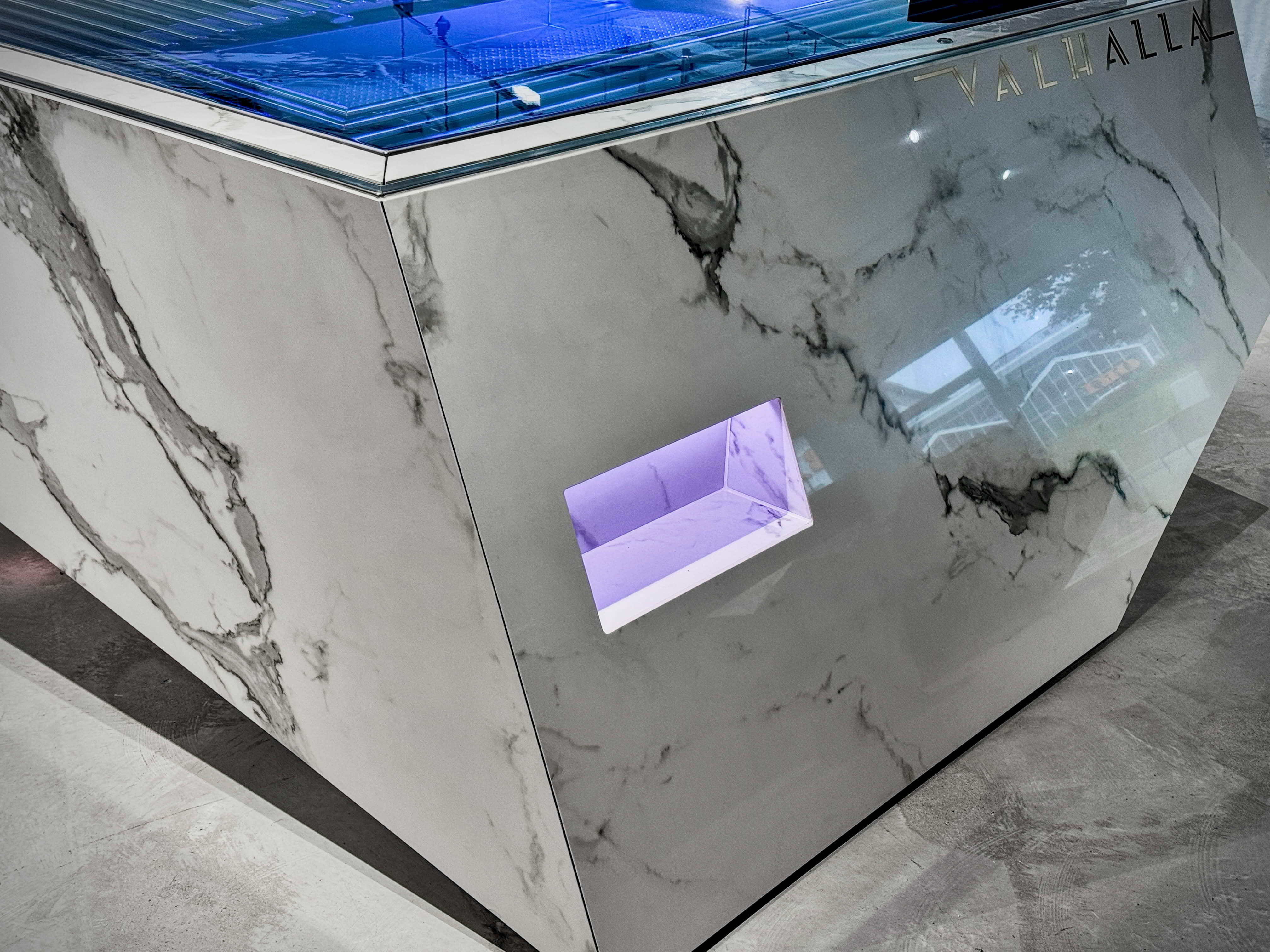

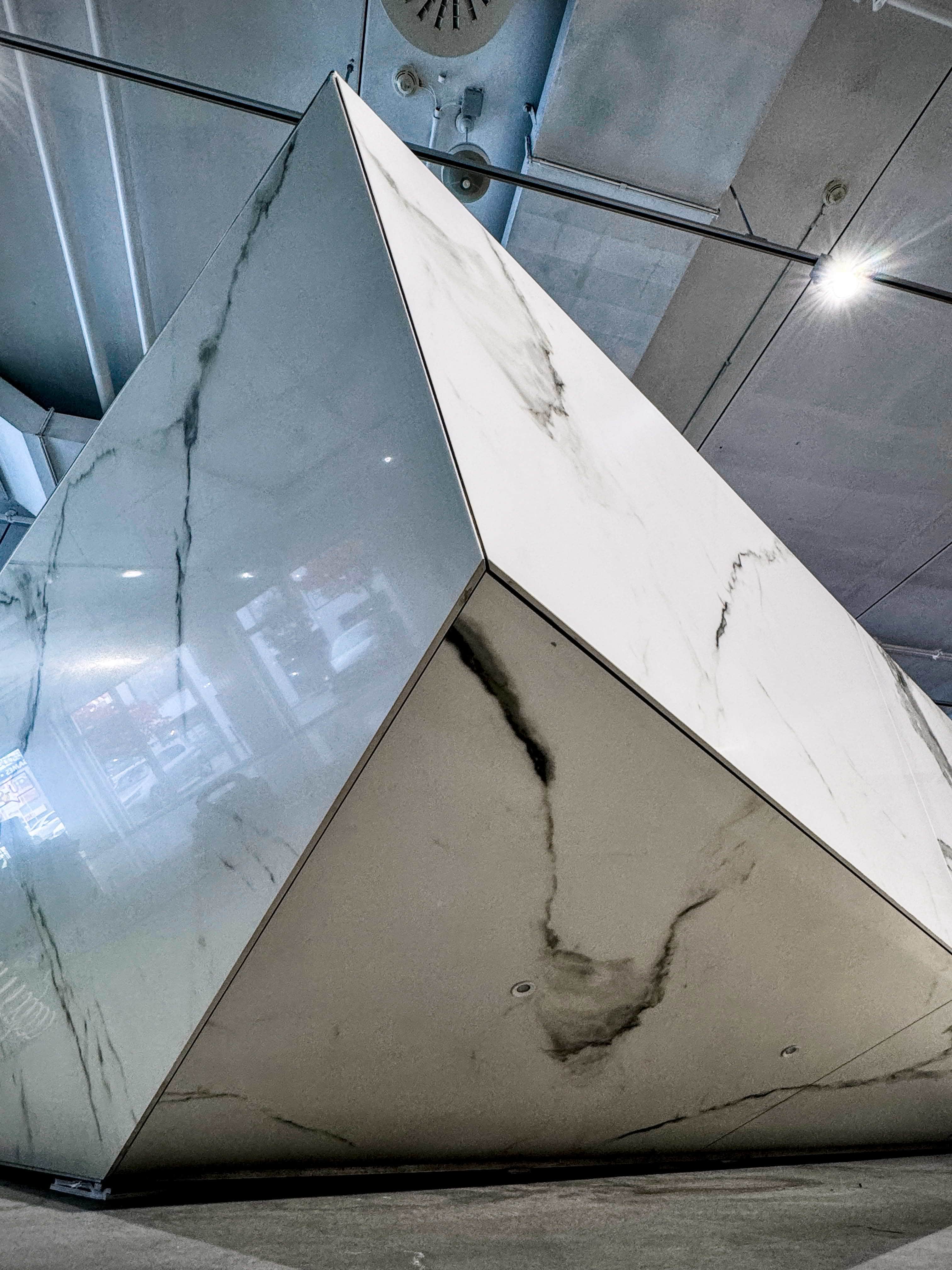

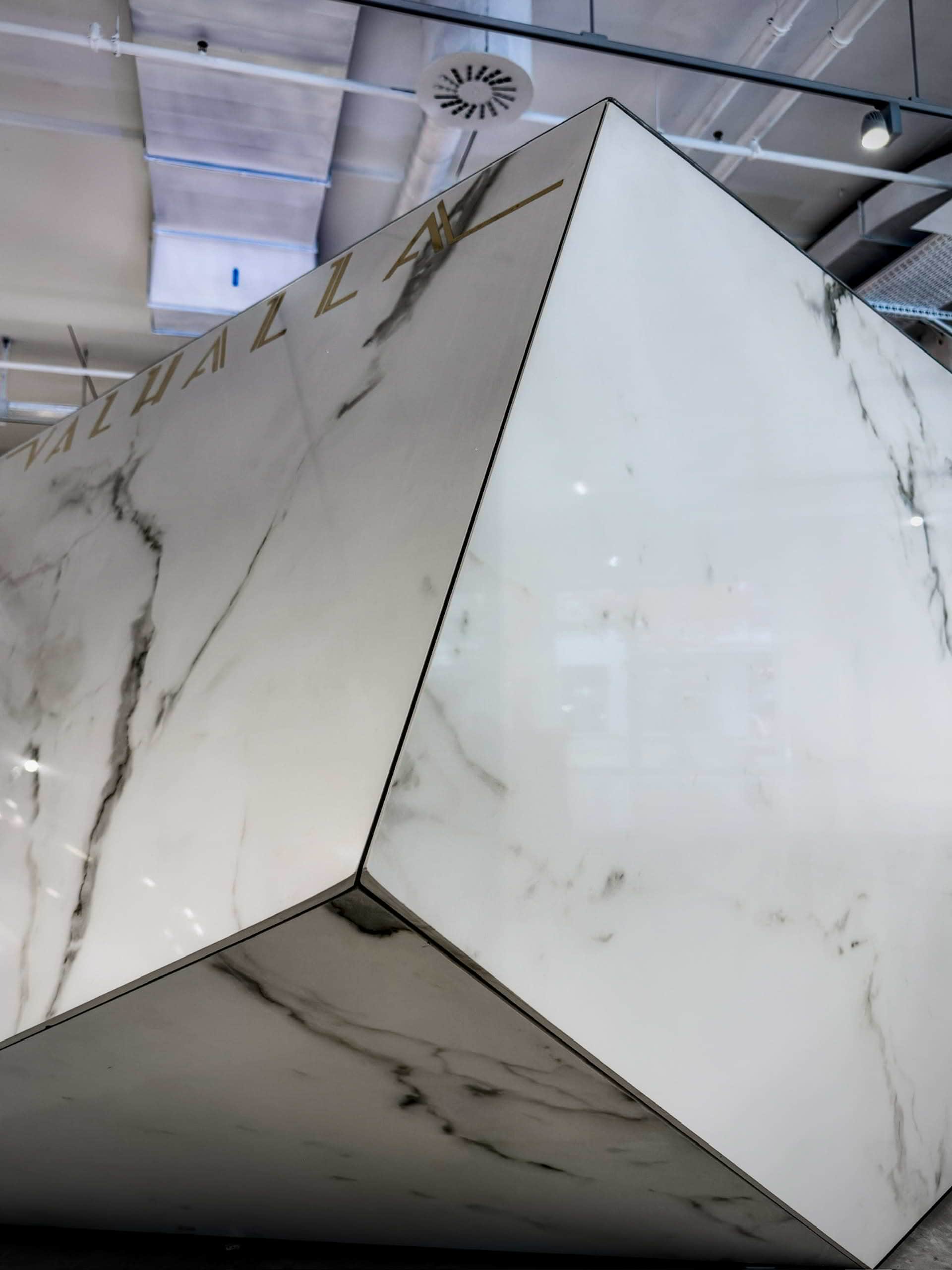

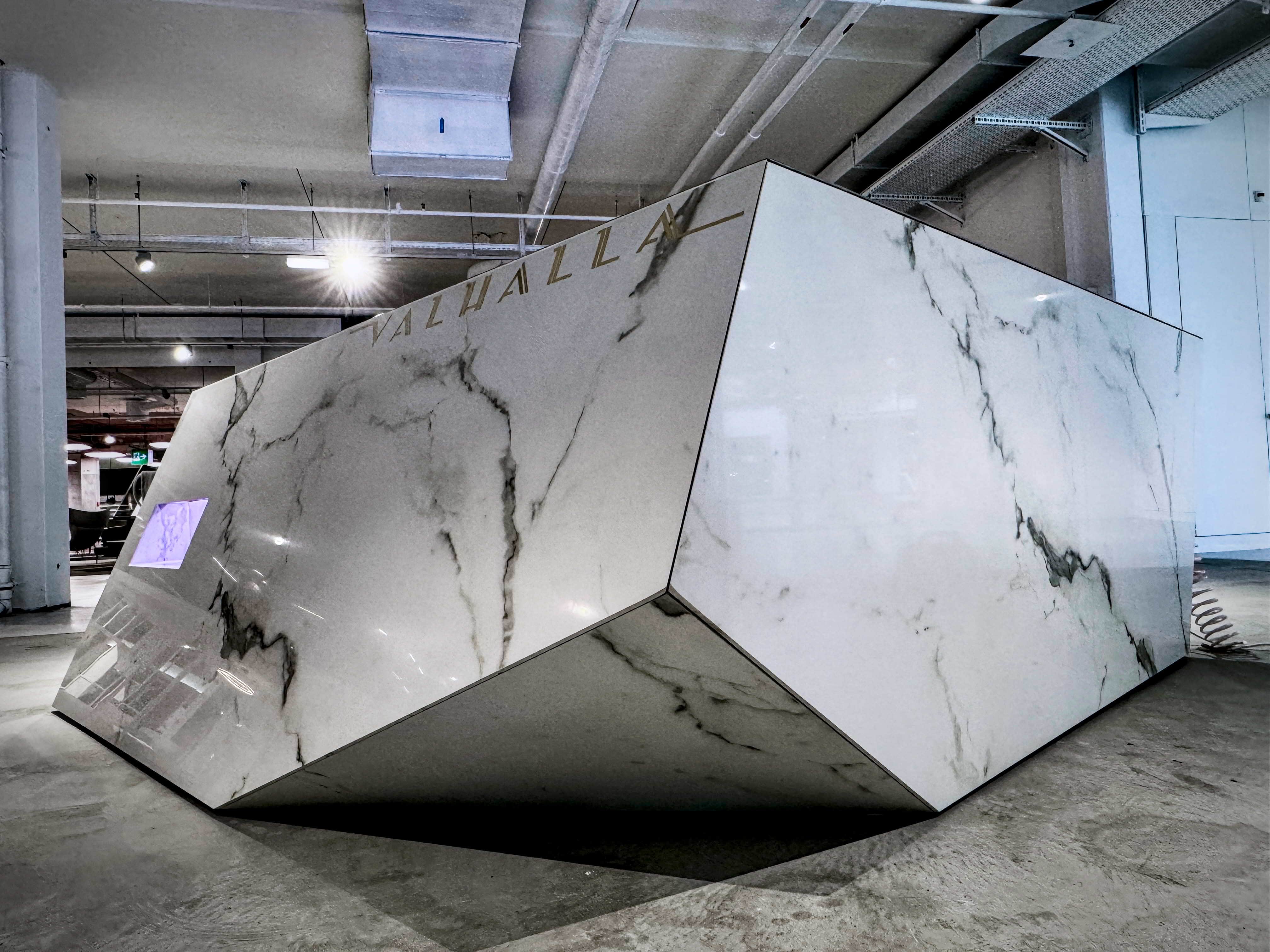

Large-format ceramics by Ceraflex enable an elegant exterior cladding in over 40 colors, adapted to your individual design preferences.
Key Properties | |
| Dimensions | 2822 x 2400 x 1000 mm |
| Empty Weight | 720kg |
| Capacity | 4-5 People |
| Aux. Systems | fully built-in and integrated |
| App-Controls | Temperature, Filtration time, backwashing, overflow valve for infinity mode, automatic fresh water supply, monitoring and input of target values: pH reducer, redox potential, flocculant |
Technology / Water Treatment | |
| Insulation | XPS: floor 40 mm; walls 20-40 mm |
| Overflow tank | 450 litre |
| Sand filter with automatic cleaning | yes |
| Flocculation system | yes |
| Level regulation | automatic; retractable |
| Flow guard | yes |
| pH-regulation | yes |
| Redox-regulation | yes |
| Temperature monitoring | yes |
| Power connection | 2 x 16A/400V; RCD-protected |
| Water connection | Freshwater + wastewater |
| Heating | electric 6 kW; optional 12 kW |
| Jet pump | 85 m³/h; 4.3 HP |
| Circulation pump | 9 m³/h; 230 W |
| Blower for air bubbles | Air output 300 m³/h; 2.2 kW |
| Blower valve | yes I Besco |
| Automatic backwash valve | yes I Besco |
| Lowering valve | yes I Besco |
| Refill solenoid valve | yes I Danfoss |
| Injection pump | 3 pcs. I Stenner |

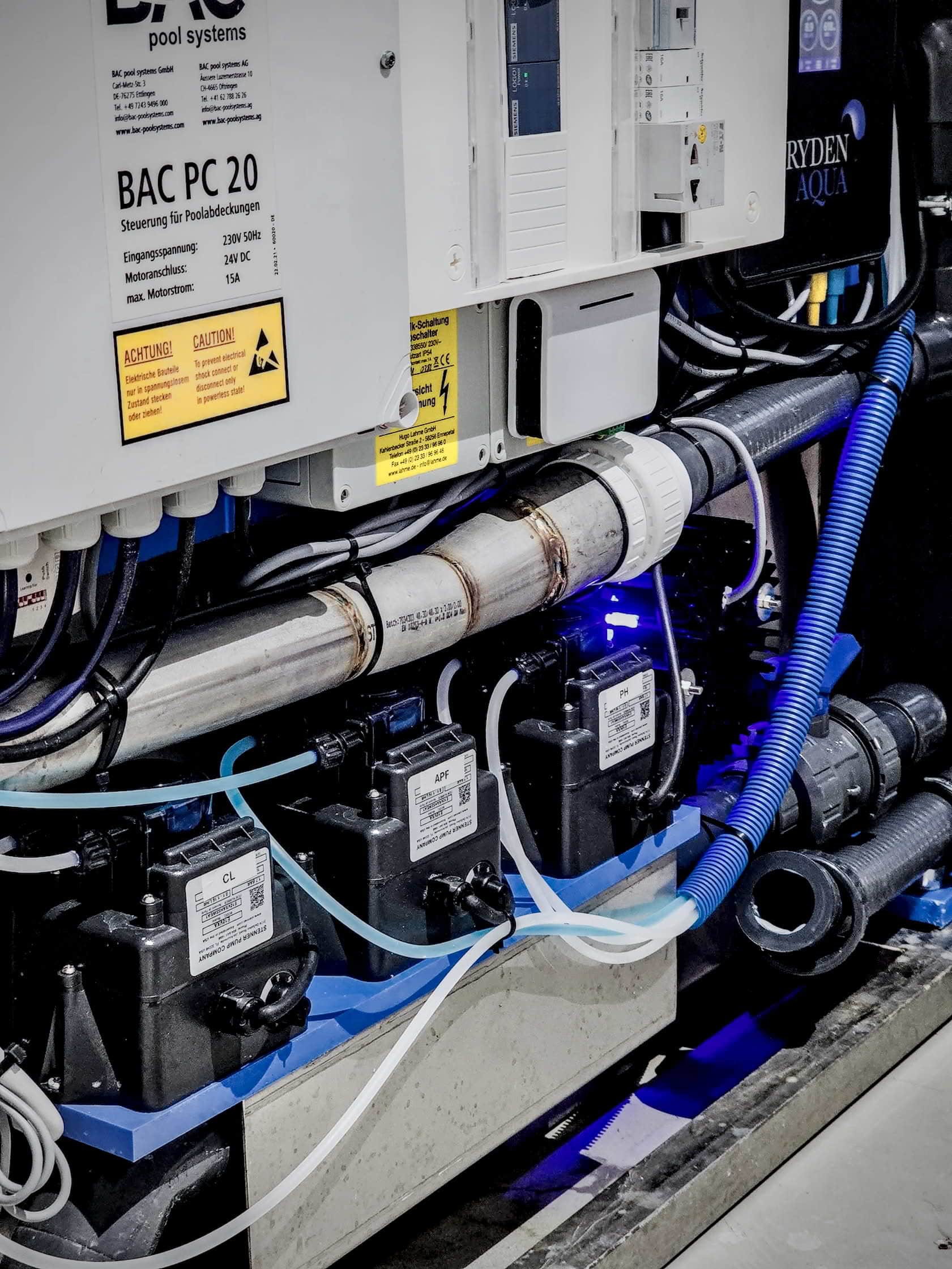

| Electrical panel | yes I Haager |
| Water level controller | infrared |
| Ethernet module | yes |
| Pool manager | yes |
Stainless Steel/ Pool Cover/ Pool Attractions | |
| Frame + Shell | V4A Stainless Steel 2.55 mm |
| Air bubble massage lounge + bench | V4A Stainless Steel 2.55 mm |
| floor | ribbed |
| Exterior cladding | large-format ceramics I Ceraflex, fine stoneware 8 mm, 45-degree miter cut, over 40 color options |
| Pool cover | underfloor roller shutter I BAC |
| Pool cover remote control | yes |
| Massage jets | 4 |
| Air bubble jets | 110 |

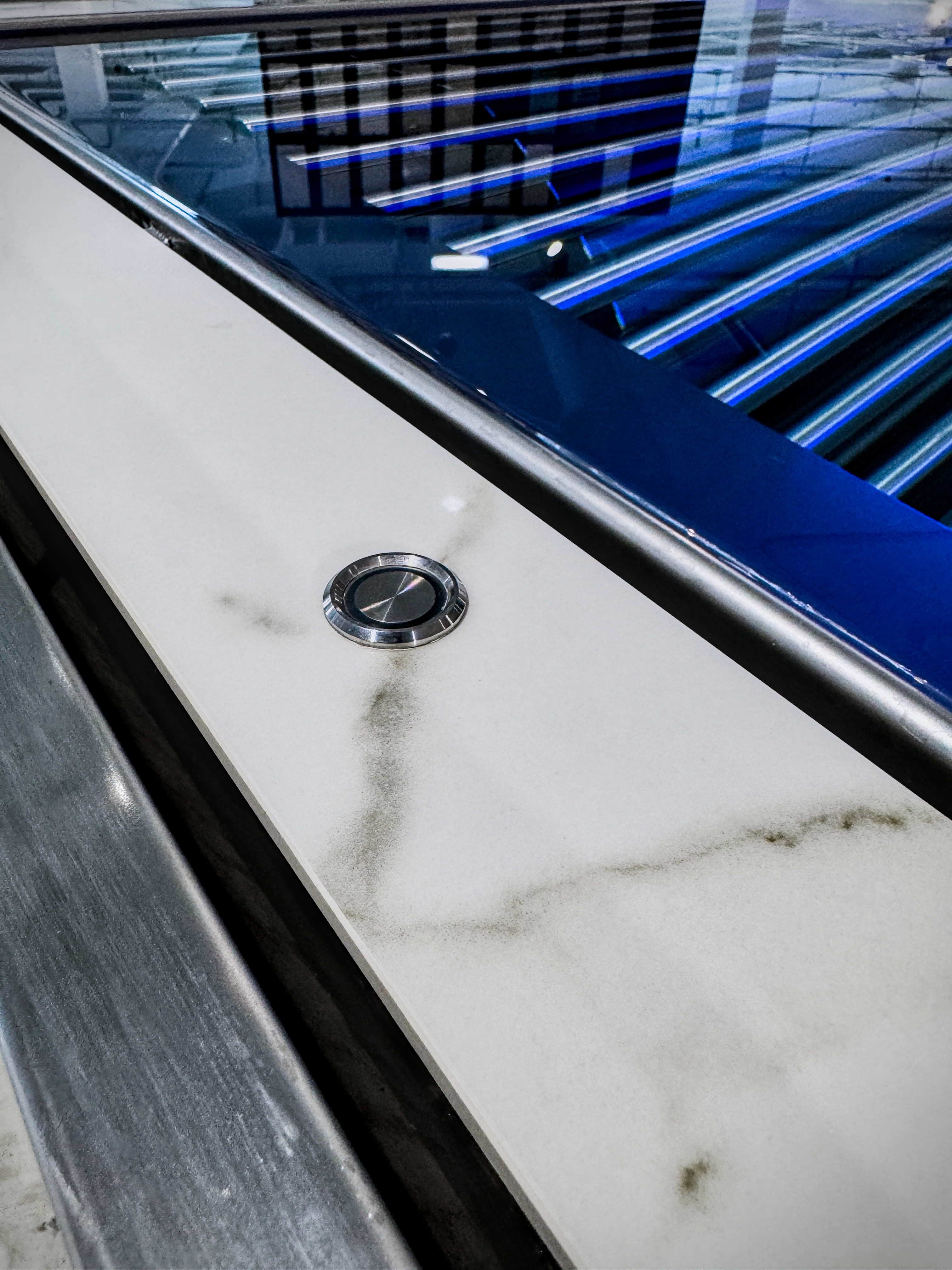

| Attraction control | 2 piezo push buttons, illuminated |
| Pool lighting | LED RGBW lamps |
| Step lighting | LED RGBW lamps |
| Exterior lighting | LED RGBW lamps |
| Wireless remote control for lighting | yes |
| Heated entrance step | yes |
Options
|
|
RequirementsAccording to our pool plan, which shows how and where the pipes need to be installed: |
|
| Network cable | must be provided |
| Water connection | 16 mm cold I PEX |
| Water hardness | 12 HD |
| Power connection | 2 x 16A/400V; RCD protected |
| Waste water | 63 mm I Geberit 2-inch internal thread |
| Drain | does not need to be installed with a slope,water is pumped, max. water column: 2.5m |
Valhalla Infinity Pools are also available as custom builds in variable dimensions, adapted shapes and designs. Feel free to contact us with your ideas and deployment plans.
